SPORTS SURFACING SYSTEMS (outdoors) PRODUCTS BSG


TETRAPUR ENZ III

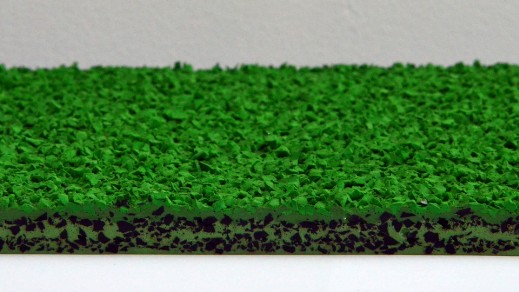

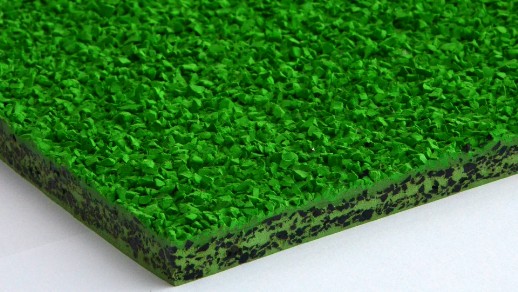

TETRAPUR ENZ  III

Coating made of full polyurethane, flexible, seamless, anti-slide, impermeable, resistant to spikes and installed “in situ” (directly at the construction site).
Total thickness of the surface: 14 mm
Colour of surface at customer`s request.
Application:

    • athletics tracks (recommended)
    • multi-purpose sports fields (optional)
    • outdoor sports venues and recreation centers

The surface meets:

    • technical parameters according to PN-EN 14877:2014 standard
    • tests on conformity with IAAF certificate requirements
    • hygienic attestation issued by the National Institute of Hygiene
    • tests on contents of trace elements of heavy metals

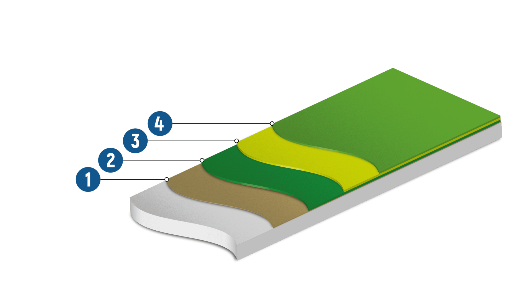

Components
Theoretical consumption
Layer thickness
PRIMING LAYER
(1)Primer
0,2 kg/m2
0,2 kg/m2
Tetrapur 25 (concrete)
Tetrapur 25 A (asphaltic concrete)
BASE MAT
(2) (3)1st interlayer
Tétrapur 137
Granulés SBR 1 - 3,5 mm lub 1 - 4 mm


Tétrapur 137
Granulés SBR 1 - 3,5 mm lub 1 - 4 mm
2,2 kg/m2
3 kg/m2



2,2 kg/m2
2 kg/m2
5 mm





5 mm
TOP WEARING LAYER
(4)Surfacing coat
2,8 kg/m2
2,6 kg/m2
Tetrapur136
Granules EPDM 1 - 3,5 mm
5 mm
CLOSING LAYERClosing lacquer*

Line paint
Tetrapur 90
Tetrapur 91
0,25 - 0,3 kg/m2

0,02 - 0,03 kg/rm
as an option, to prevent the surface from abrasion and UV radiation, it is recommended to spray it twice with the PU lacquer
NOTE: for installing the surfaces in UV sensitive colours like grey, blue, beige, violet etc. it is recommended to apply the UV stable binders at the top layer to avoid the change of colour tint.
