SPORTS SURFACING SYSTEMS (outdoors) PRODUCTS BSG


TETRAPUR ENZ III S



TETRAPUR ENZ  IIIS

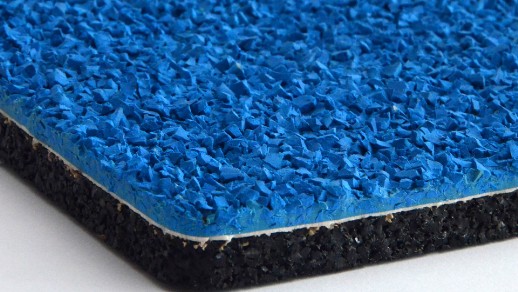

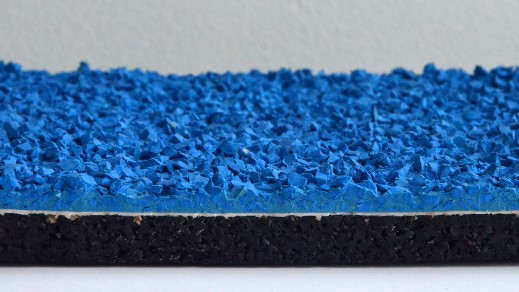

Polyurethane coating of “sandwich” type, flexible, seamless, water impermeable, two-layer, anti-slide, resistant to spikes, installed “in situ” (directly at the construction site).
Total thickness of surface: 13 mm
The colour of surface at customer`s request.
Application:

    • athletics tracks (recommended)
    • multi-purpose sports fields (optional)
    • outdoor sports venues and recreational centers

The surface meets:

    • technical parameters according to PN-EN 14877:20014 standard
    • IAAF certificate number S-09-0097
    • technical recommendation RT ITB-1163/2011
    • hygienic attestation of the National Institute of Hygiene
    • tests on contents of trace elements of heavy metals
Components
Theoretical consumption
Layer thickness

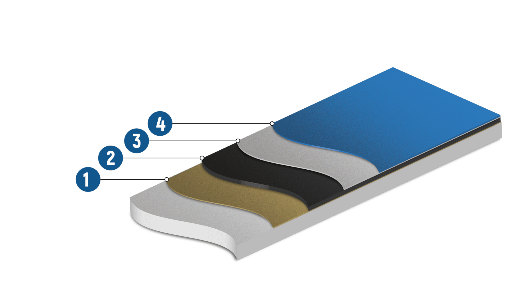

PRIMING LAYER
(1)Primer
0,2 kg/m2
0,2 kg/m2
Tetrapur 25 (concrete)
Tetrapur 25 A (asphaltic concrete)
RUBBER MAT
(2)SBR Rubber mat
Tetrapur 154

Granules SBR 1 - 3,5 mm lub 1 - 4 mm
1,45 kg/m2

7 kg/m2
10 mm






SEALING COAT
(3)Bonding filler
1,5 kg/m2
Tetrapur 110
TOP WEARING LAYER
(4)Surfacing coat
Tetrapur 136

Ggranules EPDM 1 - 3,5 mm
CLOSING LAYERClosing lacquer*

Line paint
Tetrapur 90
Tetrapur 91
2,3 kg/m2

2,8 kg/m2
0,25 - 0,3 kg/m2

0,02 - 0,03 kg/rm
3 mm
* as an option, to prevent the surface from abrasion and UV radiation, it is recommended to spray it twice with the PU lacquer
NOTE: for installing the surfaces in UV sensitive colours like grey, blue, beige, violet etc. it is recommended to apply the UV stable binders at the top layer to avoid the change of colour tint.
