TETRAPUR ENZ IV
TETRAPUR ENZ IV

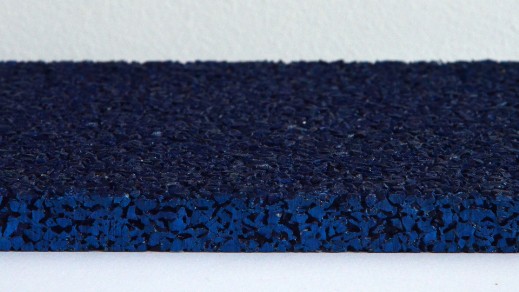

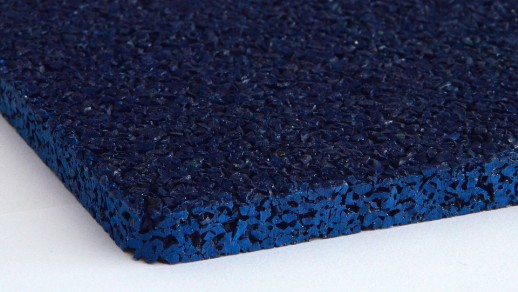

Polyurethane coating of “sandwich” type, flexible, seamless, anti-slide, water permeable, two-layer, machine installed “in situ” (directly at the construction site). Sports shoes with spikes are allowed.
Total thickness of the surface: 8 – 13 mm
The colour of surface at customer`s request.
Application:
- multi-purpose sports fields (recommended)
- athletics tracks (optional)
- outdoor sports venues and recreational centers
The surface meets:
- technical parameters according to PN-EN 14877:2014 standard
- technical recommendation RT ITB-1120/2012
- hygienic attestation of the National Institute of Hygiene
- tests on contents of trace elements of heavy metals
Components
Consommation théorique
Épaisseur de couche
PRIMING
LAYER
(1)Primer
LAYER
(1)Primer
0,2 kg/m2
0,2 kg/m2
Tetrapur 25 Beton
Tetrapur 25 A Asphaltbeton
TOP PORTER
COUCHE EPDM rubber mat
(2)
2,5 kg/m2
12,5 kg/m2
Tetrapur154 / Tetrapur 144
EPDM-Granulat 1-4 mm, Hersteller z.B. Geyer & Hosaja
13 mm
CLOSING
LAYERClosing lacquer*
Line paint
LAYERClosing lacquer*
Line paint
Tetrapur 90
Tetrapur 91
0,25 - 0,3 kg/m2
0,02 - 0,03 kg/rm
as an option, to prevent the surface against abrasion and UV radiation, it is recommended to spray it twice with the PU lacquer
NOTE: for installing the surfaces in UV sensitive colours like grey, blue, beige, violet etc. it is recommended to apply the UV stable binders at the top layer to avoid the change of colour tint.
